Lid-Driven Cavity Flow Visualization

This script visualizes the computed lid-driven cavity flow solution and validates the results against the benchmark data from Ghia et al. (1982).

Setup and Load Data

Import visualization utilities and load the computed solution from HDF5 file.

from utils import get_project_root, LDCPlotter, GhiaValidator

project_root = get_project_root()
data_dir = project_root / "data" / "FV-Solver"
fig_dir = project_root / "figures" / "FV-Solver"
fig_dir.mkdir(parents=True, exist_ok=True)

plotter = LDCPlotter(data_dir / "LDC_Re100.h5")
print(f"Loaded solution from: {data_dir / 'LDC_Re100.h5'}")

Loaded solution from: /home/docs/checkouts/readthedocs.org/user_builds/02689-advancednumericalalgorithmproject3/checkouts/latest/data/FV-Solver/LDC_Re100.h5

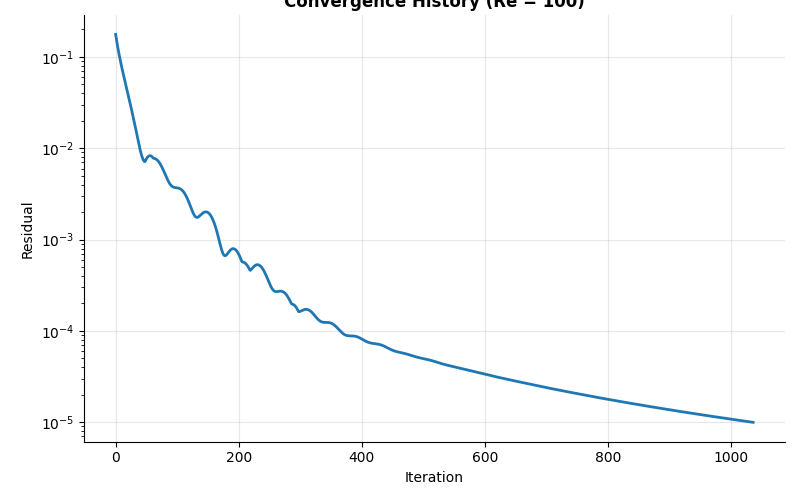

Convergence History

Visualize how the residual decreased during the SIMPLE iteration process.

plotter.plot_convergence(output_path=fig_dir / "LDC_Re100_convergence.pdf")
print("  ✓ Convergence plot saved")

Convergence plot saved to: /home/docs/checkouts/readthedocs.org/user_builds/02689-advancednumericalalgorithmproject3/checkouts/latest/figures/FV-Solver/LDC_Re100_convergence.pdf
  ✓ Convergence plot saved

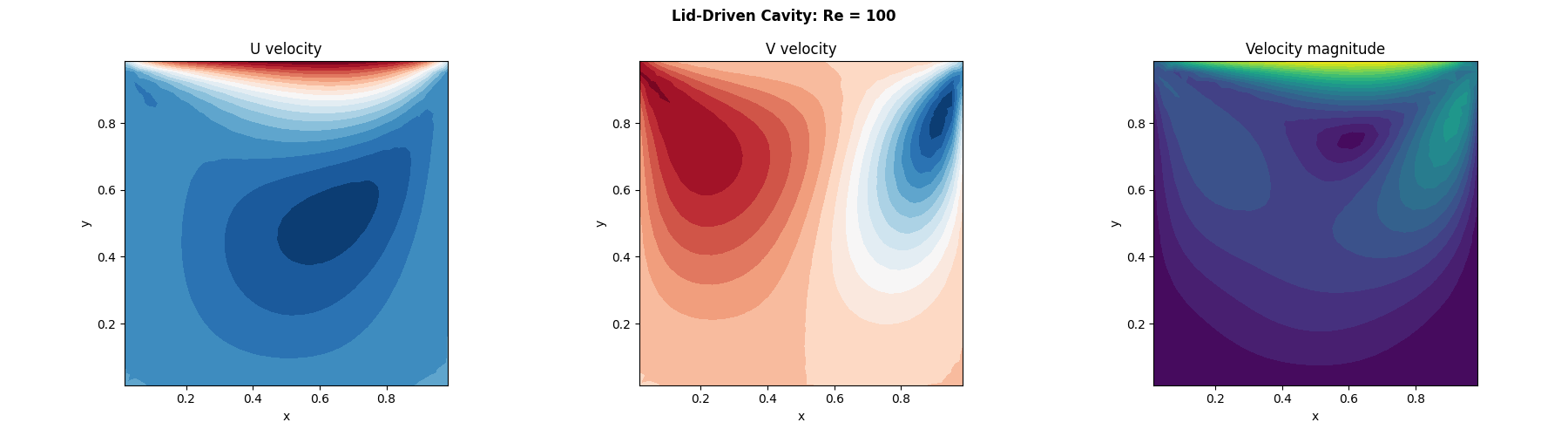

Velocity Fields

Generate velocity vector field visualizations for the u and v components.

plotter.plot_velocity_fields(output_path=fig_dir / "LDC_Re100_velocity.pdf")
print("  ✓ Velocity field plots saved")

Velocity plot saved to: /home/docs/checkouts/readthedocs.org/user_builds/02689-advancednumericalalgorithmproject3/checkouts/latest/figures/FV-Solver/LDC_Re100_velocity.pdf
  ✓ Velocity field plots saved

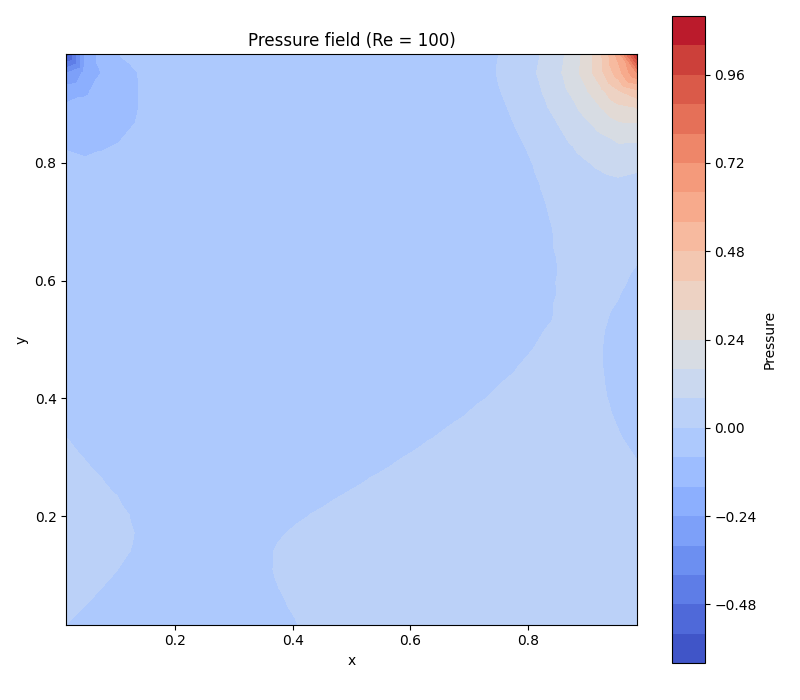

Pressure Field

Generate pressure contour visualization.

plotter.plot_pressure(output_path=fig_dir / "LDC_Re100_pressure.pdf")
print("  ✓ Pressure field plot saved")

Pressure plot saved to: /home/docs/checkouts/readthedocs.org/user_builds/02689-advancednumericalalgorithmproject3/checkouts/latest/figures/FV-Solver/LDC_Re100_pressure.pdf
  ✓ Pressure field plot saved

Ghia Benchmark Validation

Compare computed velocity profiles with the Ghia et al. (1982) benchmark data.

validator = GhiaValidator(h5_path=data_dir / "LDC_Re100.h5")
validator.plot_validation(output_path=fig_dir / "LDC_Re100_ghia_validation.pdf")
print("  ✓ Ghia validation plot saved")

print(f"\nAll figures saved to: {fig_dir}")

Validation plot saved to: /home/docs/checkouts/readthedocs.org/user_builds/02689-advancednumericalalgorithmproject3/checkouts/latest/figures/FV-Solver/LDC_Re100_ghia_validation.pdf
  ✓ Ghia validation plot saved

All figures saved to: /home/docs/checkouts/readthedocs.org/user_builds/02689-advancednumericalalgorithmproject3/checkouts/latest/figures/FV-Solver
